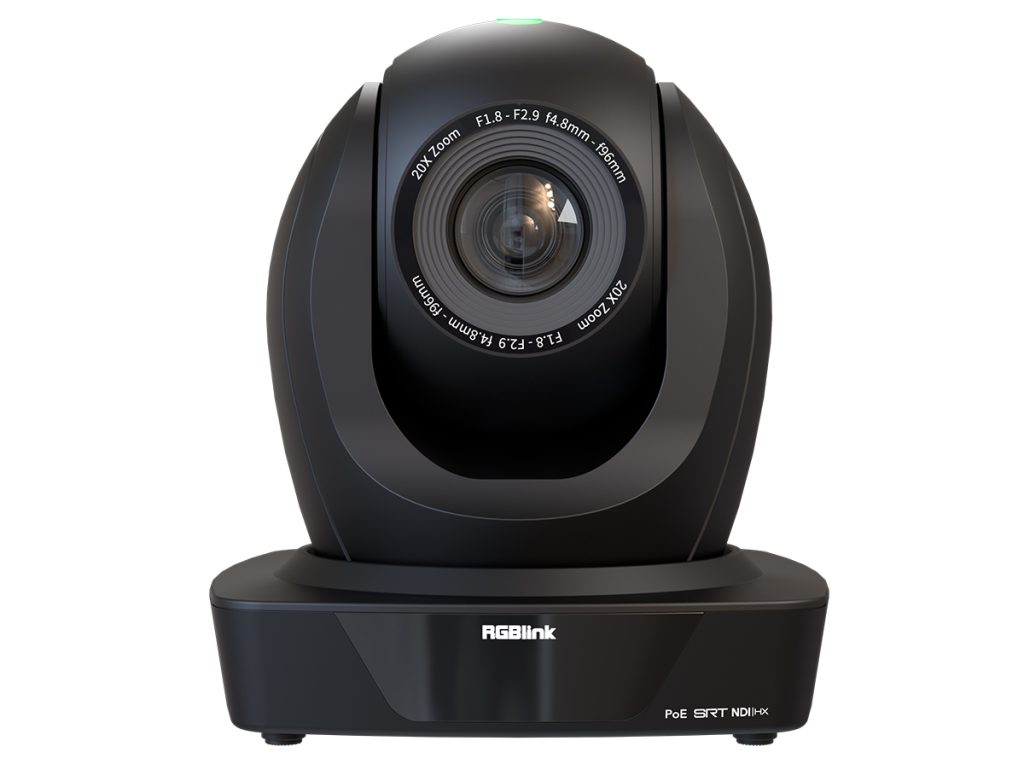

vue PTZ 2K

2K Broadcast PTZ Camera

The RGBlink vue PTZ camera adds a whole new dimension to capturing video presentations.

With an advanced ISP image processor and a 2-megapixel sensor, it is available in a wide range of models with 12x, 20x and 30x optical zoom. Output options range from HDMI and SDI to H.264, H.265 and NDI. Capture all the action with pan, tilt and zoom, get even closer with 10x digital zoom, and deliver the best video at up to 60 fps with autofocus, wide dynamic range (WDR) and 2D/3D digital noise reduction (DNR).

Every vue model features a unique tally crown light built directly into the housing, visible from 360 degrees. The innovative, patented RGBlink vue camera design suits any environment.

Features

Models and Part Numbers

Optical Zoom Without NDI NDI|HX2
12x 981-0011-31-0: RGB12X-POE-TLY
  • Full HD
  • HDMI / 3G-SDI / LAN interfaces
  • 12x optical zoom
  • f = 4.1 – 49.2mm
  • Tele 6.57°, wide 70.28°
  • F-number: F1.8 – F2.68
  • Tally and PoE support
  • Max resolution 2K@60
981-0011-32-0: RGB12X-PNDI-TLY
  • Full HD
  • HDMI / 3G-SDI / LAN / NDI interfaces
  • 12x optical zoom
  • f = 4.1 – 49.2mm
  • Tele 6.57°, wide 70.28°
  • F-number: F1.8 – F2.68
  • Tally and PoE support
  • Max resolution 2K@60
20x 981-0011-27-0: RGB20X-POE-TLY
  • Full HD
  • HDMI / 3G-SDI / LAN interfaces
  • PoE over LAN
  • 20x optical zoom
  • f = 4.8 – 96mm
  • Tele 3.45°, wide 60.04°
  • F-number: F1.8 – F2.9
  • Tally and PoE support
  • Max resolution 2K@60
981-0011-28-0: RGB20X-PNDI-TLY
  • Full HD
  • HDMI / 3G-SDI / LAN / NDI interfaces
  • 20x optical zoom
  • f = 4.8 – 96mm
  • Tele 3.45°, wide 60.04°
  • F-number: F1.8 – F2.9
  • Tally and PoE support
  • Max resolution 2K@60
30x 981-0011-33-0: RGB30X-POE-TLY
  • Full HD
  • HDMI / 3G-SDI / LAN interfaces
  • 30x optical zoom
  • f = 5.2 – 148.4mm
  • Tele 2.14°, wide 58.1°
  • F-number: F1.3 – F4.8
  • Tally and PoE support
  • Max resolution 2K@60
981-0011-34-0: RGB30X-PNDI-TLY
  • Full HD
  • HDMI / 3G-SDI / LAN / NDI interfaces
  • 30x optical zoom
  • f = 5.2 – 148.4mm
  • Tele 2.14°, wide 58.1°
  • F-number: F1.3 – F4.8
  • Tally and PoE support
  • Max resolution 2K@60

vue PTZ 2K Feature Comparison

RGB12X-POE-TLY RGB12X-PNDI-TLY RGB20X-POE-TLY RGB20X-PNDI-TLY RGB30X-POE-TLY RGB30X-PNDI-TLY
Connections Video Output
HDMI ● ● ● ● ● ●
SDI(BNC) ● ● ● ● ● ●
USB2-A (UVC) ● ● ● ● ● ●
Network IP/Video
RJ45 ● ● ● ● ● ●
Audio / Line in
Mini-Jack ● ● ● ● ● ●
Control
RS232(DIN) ● ● ● ● ● ●
RS485(IDC) ● ● ● ● ● ●
Power
DC Jack ● ● ● ● ● ●
Features PoE ● ● ● ● ● ●
NDI ● ● ●
RTMP ● ● ● ● ● ●
RTSP ● ● ● ● ● ●
SRT ● ● ● ● ● ●
Optics Optical Zoom 12x 20x 30x
Digital Zoom 10x 10x 10x
Sensor Type 1/2.8" 1/2.8" 1/2.8"
Angle(°) 70.28~6.57 60.04~3.45 58.1~2.14
FOV(H)° 70.28~6.57 60.04~3.45 58.1~2.14
FNO(F) 1.8~2.68 1.8~2.9 1.3~4.8
