vue PTZ 4K Gen2
4K UHD Broadcast UHD Camera

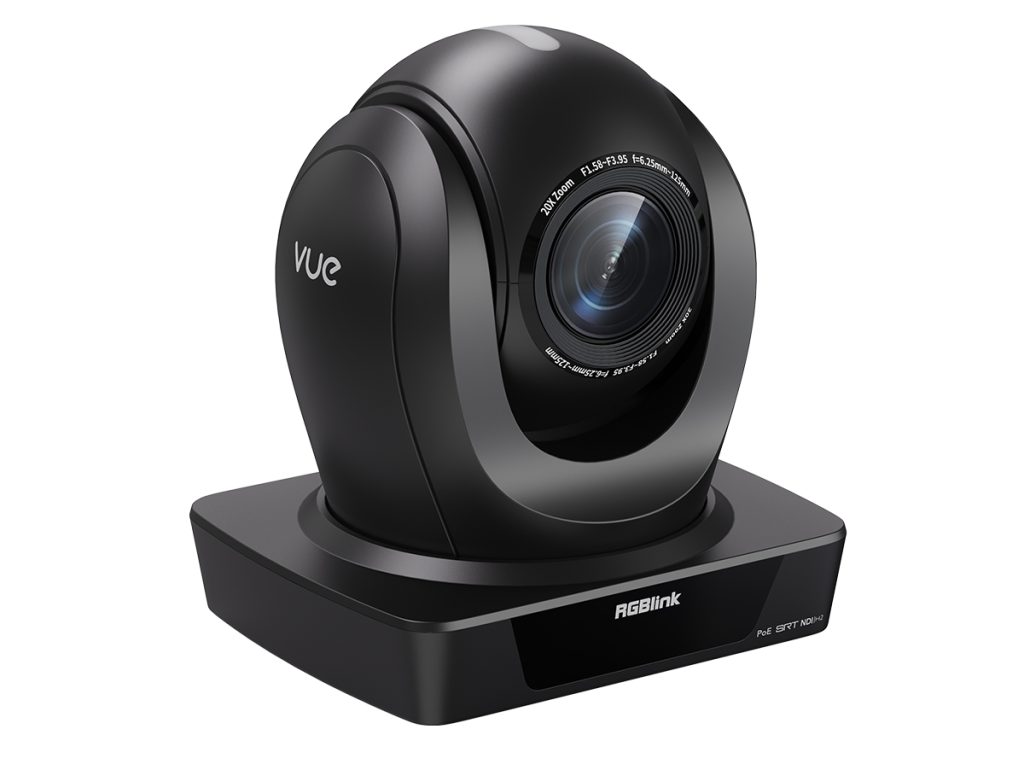

The RGBlink vue UHD PTZ camera is designed for professional broadcast applications.
Its 1600TVL resolution lens, equipped with an advanced ISP image processor and an 8.42-megapixel sensor, delivers ultra-clear 4K at 60Hz image quality. It supports 12x, 20x, and 30x optical zoom, and a wide range of IP output formats from HDMI, 3G-SDI, and UVC to RTSP, RTMP, ONVIF, and SRT, with NDI as an optional feature.
With a tilt range of -30° to +90°, it achieves a truly panoramic field of view, while an ultra-wide dynamic range provides powerful color reproduction. The unique TALLY indicator light and identification board are visible from 360°, eliminating uncertainty during device switching. The innovative, patented design makes the RGBlink vue camera suitable for any environment.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Optical Zoom | Without NDI | With NDI|HX2 |
12x |
981-1100-07-0: RGB12X-UPAI-OL(gen2)
|
981-1100-08-0: RGB12X-UNAI-OL (gen2)
|
20x |
981-1100-09-0: RGB20X-UPAI-OL(gen2)
|
981-1100-10-0: RGB20X-UNAI-OL(gen2)
|
30x |
981-1100-11-0: RGB30X-UPAI-OL
|
981-1100-12-0: RGB30X-UNAI-OL
|
RGB12X-UPAI-OL | RGB12X-UNAI-OL | RGB20X-UPAI-OL | RGB20X-UNAI-OL | RGB30X-UPAI-OL | RGB30X-UNAI-OL | ||
Connectivity | Video Output | ||||||
HDMI | ● | ● | ● | ● | ● | ● | |
SDI(BNC) | ● | ● | ● | ● | ● | ● | |
UVC(USB3.0A) | ● | ● | ● | ● | ● | ● | |
Network IP/Video | |||||||
RJ45 | ● | ● | ● | ● | ● | ● | |
Audio Line/In | |||||||
Mini-Jack | ● | ● | ● | ● | ● | ● | |
Control | |||||||
RS232(DIN) | ● | ● | ● | ● | ● | ● | |
RS485(IDC) | ● | ● | ● | ● | ● | ● | |
Power | |||||||
DC Jack | ● | ● | ● | ● | ● | ● | |
Features | PoE+ | ● | ● | ● | ● | ● | ● |
NDI|HX2 | ● | ● | ● | ||||
RTMP | ● | ● | ● | ● | ● | ● | |
RTSP | ● | ● | ● | ● | ● | ● | |
SRT | ● | ● | ● | ● | ● | ● | |
Optics | Optical Zoom | 12x | 20x | 30x | |||
Digital Zoom | 16x | 16x | 16x | ||||
Sensor Type | 1/2.8" | 1/2.8" | 1/2.8" | ||||
EFL(f)mm | 4.1 ~ 49.2 | 4.8 ~ 96 | 5.2 ~ 148.4 | ||||
FOV(H)° | 70.4~6.72 | 60.04~3.81 | 58.1~2.14 | ||||
FNO(F) | 1.8~2.68 | 1.8~2.9 | 1.3~4.8 |
