TAO 1tiny Gen 2 UVC to HDMI/NDI Smart Converter

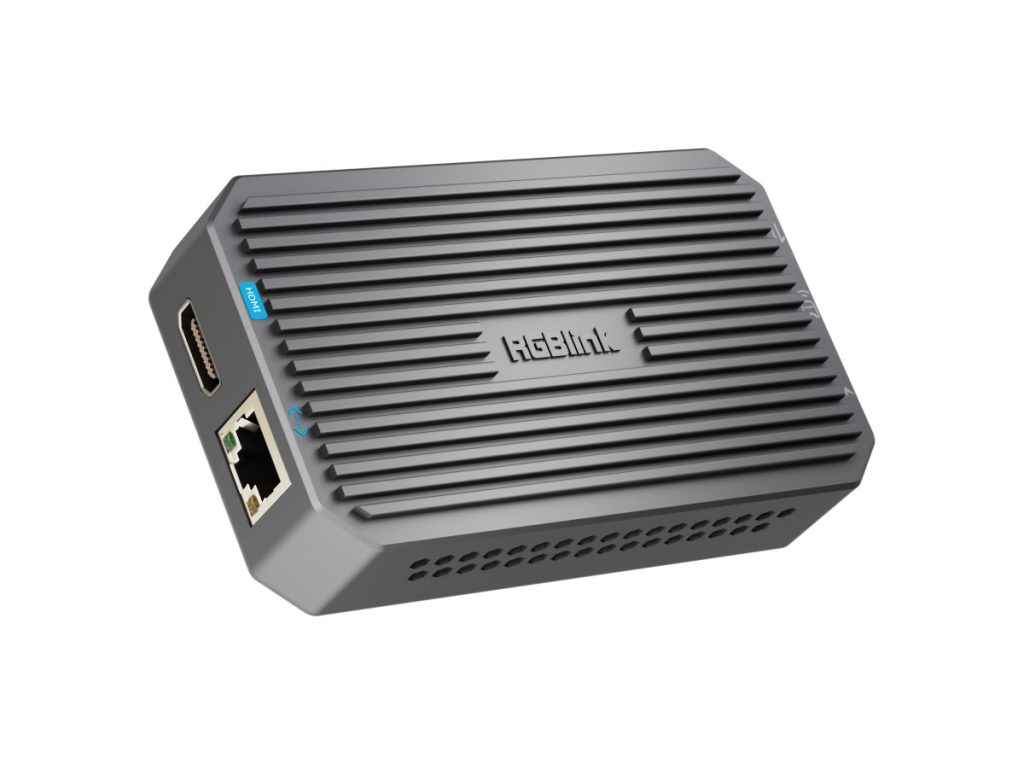

RGBlink introduces the new TAO 1tiny Gen 2 UVC to HDMI smart converter, keeping all the great features of the first version while adding important improvements. The upgraded model features a stylish silver-gray metal body with better cooling for more reliable performance, plus a new Gigabit Ethernet port for sending high-quality video over networks (with NDI support). Its easy-to-use web interface lets you control settings and switch signals remotely. It works perfectly with RGBlink mini devices and supports popular UVC cameras – ideal for professional streaming and video production.
The TAO 1tiny converts USB 3.0 (UVC compatible) video to HDMI 2.0 and also handles NDI encoding. It can:
1. Change video from USB cameras or mini devices into HDMI output or NDI streams;
2. Turn NDI signals into HDMI 2.0 output.
This means you can use regular USB cameras as professional NDI sources, or show NDI streams on monitors – a flexible solution for live production, meetings, and more.
|
|
|
|
|
| Product Code | Description |
| 410-5513-12-0 | TAO 1tiny v2 |
| Connectors | Input | Type-C | 1×USB-C |
| Output | HDMI 2.0 | 1×HDMI-A | |
| Power | Type-C | 1×USB-C | |
| Ethernet | LAN | 1×RJ45 | |
| Performance | Input Resolution | USB-C | |
| SMPTE | 720p@25/30/50/60 | 1080p@30/50/60 | 2160p@30 | ||
| VESA | 1280×720@30/50/60 | 1280×768@60 | 1920×1080@25/30/50/60 | 3840×2160@30 | ||
| Output Resolution | HDMI | ||
| SMPTE | 1080p@30/50/60 | 2160p@30 | ||
| VESA | 1280×720@30/50/60 | 1280×768@60 | 1920×1080@25/30/50/60 | 3840×2160@60 | ||
| Supported Standards | HDMI | 2.0 | |
| USB | 3.0 | ||
| Decoding Format | MJPEG | H.264 | H.265 | ||
| Streaming | RTMP | RTMPs | RTSP | NDI | ||
| NDI Function | NDI Encode | NDI | HX | |
| NDI Decode | NDI | HX, NDI | HX2, NDI | HX3 | ||
| Compatibility | Cameras supporting UVC1.1/UVC1.5 protocol | ||
| Compatibility Tested | RGBlink | mini, mini-pro, mini-edge, mini-mx, vue PTZ 2K | |
| Blackmagic Design | ATEM mini | ||
| DJI | Osmo Action 5, Osmo Action 4, POCKET 3 | ||
| Insta 360 | X3, link UHD 4K AI | ||
| OBSBOT | tiny 2K, tiny 4K, meet 2K, meet 4K | ||
| Power | Input Voltage | 9V/2A or 5V/2A (depending on adapter) | |
| Max Power | 18W | ||
| Environment | Temperature | 0℃ to 55℃ | |
| Humidity | 20% to 55% | ||
| Physical Specifications | Weight | Unit | 0.2kg |
| Dimensions | Unit | 110mm × 64.5mm × 25.4mm | |
