PROTON ZOOM Main Visual
Optical Zoom · Ultra-compact Broadcast Camera
PROTON ZOOM
Get closer to the action

PROTON ZOOM is an innovative model that adds optical zoom to an ultra-compact POV camera. Built on the proven PROTON CAM platform, it delivers a 2.2x zoom across a 55°–115° range. Without compromising on size or performance, it lets you get closer to the subject across sports, live streaming, and creative production.

Part No. PCI-ZOOM-01
2.2x
One of the smallest broadcast cameras with optical zoom A variable 55°–115° field of view covers everything from ultra wide to telephoto in a single unit. 50×50×73mm, 234g.
Key Specifications
2.2x
Optical zoom
55°–115° variable
12 bit
High dynamic range
1080p sensor
115°
Wide-angle end
(at zoom-out)
3.5 W
Ultra-low power
4.5V–25V operating
HDR
HLG / PQ / S-log3
fully supported
Tally
Integrated
tally light
Variant Models
PROTON ZOOM
PROTON ZOOM
PCI-ZOOM-01
Standard model. Integrated cable output.

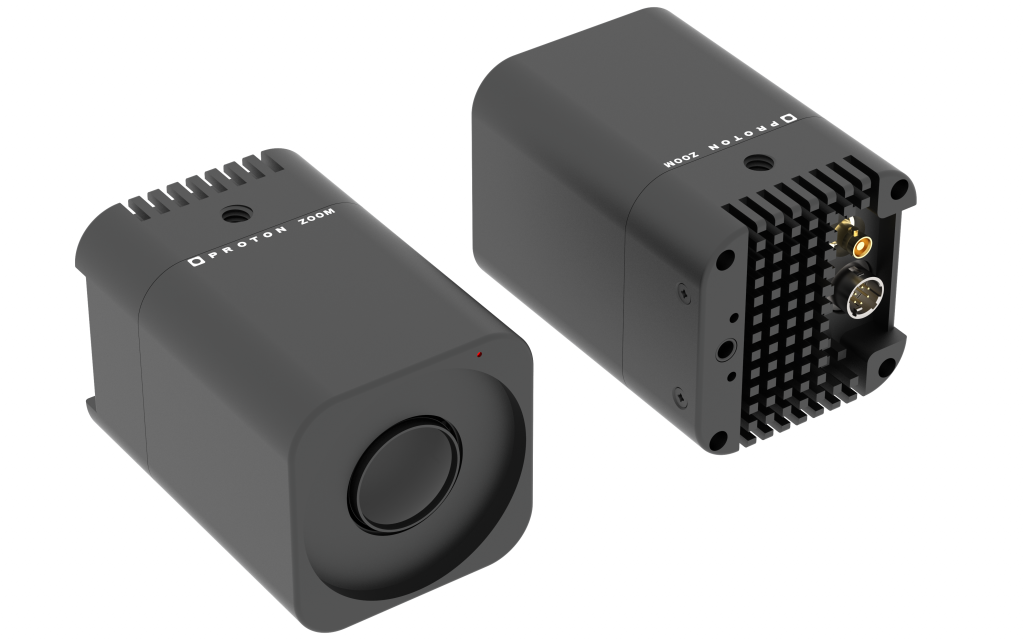

PROTON ZOOM CON
PROTON ZOOM CON
PCI-ZOOM-CON
Connector version. Features mini-SDI and Hirose connectors for easy on-site cable replacement.
Optional Cables (sold separately)
SDI Cable — 1.8m, SDI / HD-SDI
CBL-BNC-185-HDBNC-01
Power Cable — 1.8m
CBL-POWER-02-200
Applications
Sports
broadcasting
Live
streaming
Drone
mounting
Long-distance
subject capture
Creative
video production
Specifications
Video Resolution1080p (Full HD)
Sensor Bit Depth12 bit
Zoom Ratio2.2x optical zoom
Field of View Range55° (telephoto end) – 115° (wide-angle end)
HDR FormatsHLG / PQ / S-log3
Power Consumption3.5 W
Operating Voltage4.5 V–25 V
Dimensions50 × 50 × 73 mm
Weight234 g
Tally LightIntegrated
Low-light PerformanceLow noise, capable in minimal lighting
