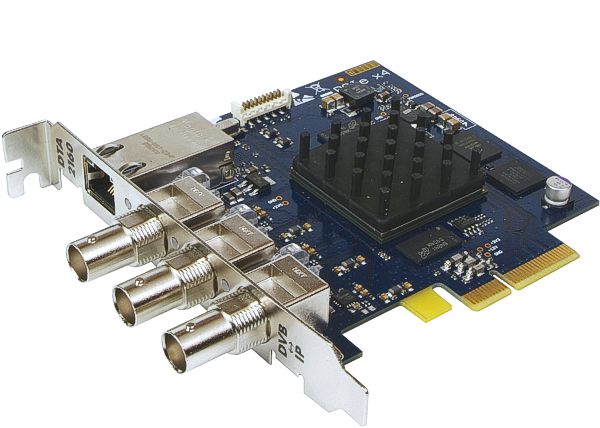

GigE and 3x ASI Ports for PCIe
DekTec’s Gigabit Ethernet adapter with three ASI/SDI ports, allowing zero-jitter transmission and reception of Transport Streams over IP networks; the additional three ASI ports allow easy conversion between the two interface types.
* The DTA-2160 is still in production but is coming toward the end of its life cycle. Therefore, the DTA‑2160 is not recommended for new designs.
| Parameter | Value | |
|---|---|---|
|
IP |
Physical layer |
IEEE 802.3ab |
|
Data rate |
10/100/1000 |
|
|
Connector |
RJ-45
|
|
|
Maximum TS rate |
600Mbit/s |
|
|
Parallel streams |
100+
* Limited only by cumulative TS rate and PC resources |
|
|
ASI |
Physical layer |
DVB-ASI (coax) |
|
Connector |
75-Ω BNC (3x) |
|
|
Rx or Tx bitrate |
0 ～ 214Mbit/s |
|
|
Resolution |
＜1bit/s |
|
|
Transport packets per IP |
1 ～ 7
|
|
|
TS-over-IP protocol |
UDP or RTP |
|
|
TS over IP FEC |
SMPTE 2022-1 |
|
|
IP encapsulation |
SMPTE 2022-2 |
|
|
PCI Express |
PCIe gen1 x4 |
|
|
OS |
Windows 10, 11 Windows Server 16, 19, 22 Linux ≥2.6.32, 3.x, 4.x, 5.x |
|
|
Processor |
Core i5 minimum Core i7 recommended Or equivalent AMD CPUs |
|
| Type | Description |
|---|---|
|
DTA-2160
|
GigE and 3x ASI ports for PCIe |
|
DTA-2160-SLP |
DTA-2160 with StreamXpert Lite and StreamXpress player software |
|
DTA-2160-SXP |
DTA-2160 with StreamXpert analyzer and StreamXpress player software |
|
DTA-2160-J-SXP |
DTA-2160 with DtJitter and StreamXpert analyzer and StreamXpress player software |
|
DTA-2160-VR-J-SXP |
DTA-2160 with VF-REC stream recorder, DtJitter and StreamXpert analyzer and StreamXpress player software |
| Software | Type |
|---|---|
|
Real-Time Stream Analyzer Lite version
*Lower-priced version with decoding and basic recording functions only |
|
|
Real-Time Stream Analyzer |
|
|
Stream Player for R&D, Testing, Demos |
|
|
DtJitter |
Real-Time Jitter Analysis |
|
Advanced TS-SDI Recording Software |
|
