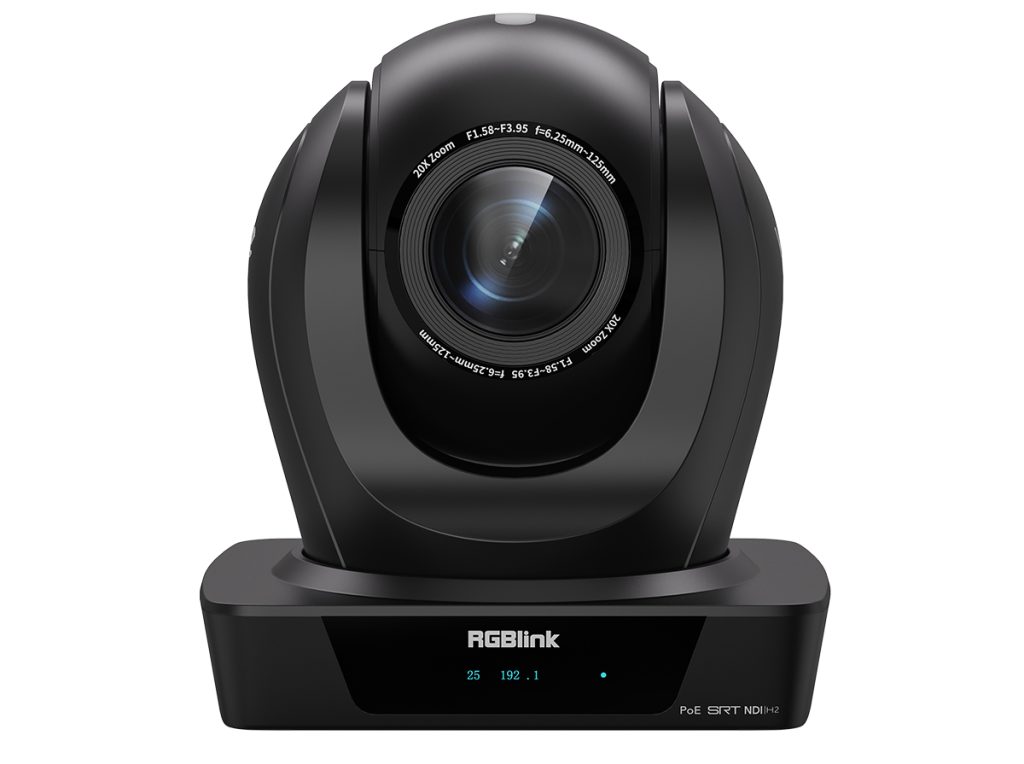

4K Broadcast PTZ camera
The RGBlink vue 4K PTZ camera is designed for professional broadcast applications. Its 1600TVL resolution lens, equipped with an advanced ISP image processor and an 8.42-megapixel sensor, delivers ultra-clear 4K image quality. It supports 12x, 20x, and 30x optical zoom, and a wide range of output formats from HDMI, 3G-SDI, and UVC to RTSP, RTMP, ONVIF, and SRT, with NDI as an optional feature.
With a tilt range of -30° to +90°, it achieves a truly panoramic field of view, while an ultra-wide dynamic range provides powerful color performance. The vue PTZ 4K features a unique TALLY indicator light and identification board, visible from a full 360°, which eliminates uncertainty during device switching. The innovative, patented RGBlink vue camera design is suitable for any environment.
|
|
|
|
|
|
|
|
|
|
|
|
| Optical Zoom | Without NDI | With NDI|HX2 |
| 12x |
981-1100-01-0: RGB12X-PAI-OL
|
981-1100-02-0: RGB12X-NAI-OL
|
| 20x |
981-1100-03-0: RGB20X-PAI-OL
|
981-1100-04-0: RGB20X-NAI-OL
|
| 30x |
981-1100-05-0: RGB30X-PAI-OL
|
981-1100-06-0: RGB30X-NAI-OL
|
| RGB12X-PAI-OL | RGB12X-NAI-OL | RGB20X-PAI-OL | RGB20X-NAI-OL | RGB30X-PAI-OL | RGB30X-NAI-OL | ||
| Connections | Video Output | ||||||
| HDMI | ● | ● | ● | ● | ● | ● | |
| SDI(BNC) | ● | ● | ● | ● | ● | ● | |
| UVC(USB3.0A) | ● | ● | ● | ● | ● | ● | |
| Network IP/Video | |||||||
| RJ45 | ● | ● | ● | ● | ● | ● | |
| Audio Line/In | |||||||
| Mini-Jack | ● | ● | ● | ● | ● | ● | |
| Control | |||||||
| RS232(DIN) | ● | ● | ● | ● | ● | ● | |
| RS485(IDC) | ● | ● | ● | ● | ● | ● | |
| Power | |||||||
| DC Jack | ● | ● | ● | ● | ● | ● | |
| Features | PoE+ | ● | ● | ● | ● | ● | ● |
| NDI|HX2 | ● | ● | ● | ||||
| RTMP | ● | ● | ● | ● | ● | ● | |
| RTSP | ● | ● | ● | ● | ● | ● | |
| SRT | ● | ● | ● | ● | ● | ● | |
| Optics | Optical Zoom | 12x | 20x | 30x | |||
| Digital Zoom | 16x | 16x | 16x | ||||
| Sensor Type | 1/2.8" | 1/2.8" | 1/2.8" | ||||
| EFL(f)mm | 4.1 ~ 49.2 | 4.8 ~ 96 | 5.2 ~ 148.4 | ||||
| FOV(H)° | 70.4~6.72 | 60.04~3.81 | 58.1~2.14 | ||||
| FNO(F) | 1.8~2.68 | 1.8~2.9 | 1.3~4.8 | ||||
