IPMX JPEG XS FIP Transceiver

P_AVN_4
P-AVN-4-003-1024x853
P_AVN_4_4
P_AVN_4_3
P_AVN_4_6
P_AVN_4_5

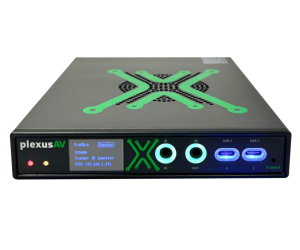

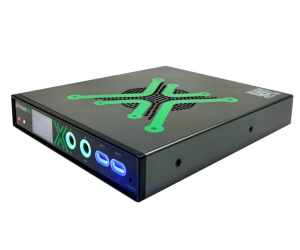

The P-AVN-4 IPMX Transceiver is a versatile, high-performance AV-over-IP device capable of both encoding and decoding video. Built to support open standards like IPMX, the P-AVN-4 ensures seamless integration into existing and future AV networks. With robust video scaling, HDR support, and flexible network connectivity options, it delivers high-quality, low-latency video transmission across various AV applications, from digital signage to live production.
Datasheet Manual QuickStart
Contact us
Purchase

overview

✔

IPMX-Based Open Standards

Built on IPMX protocols for future-proof AV-over-IP deployment.

✔

Flexible Video Support

Up to 4K60 with JPEG-XS compression for low-latency, high-quality video.

✔

Compact Form Factor

Small and easy to install, fits into any AV environment without compromise.

✔

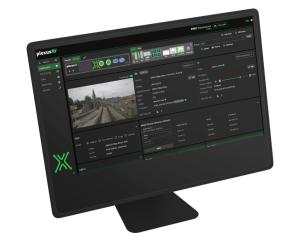

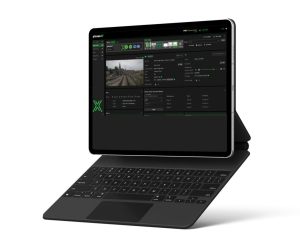

Easy-to-Use Interface and Advanced API

Interface designed for quick deployment and ease-of-use. With its advanced API, the P-AVN-4 can be controlled and managed by the PlexusAV Visual Array or integrate into existing network management systems.

✔

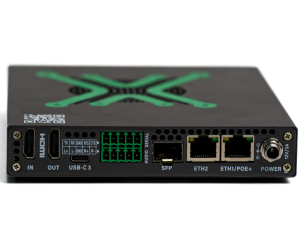

Multiple Network Ports

Three gigabit network ports, including an SFP option, allow for installation into fiber, Ethernet and PoE network environments.

✔

Advanced Audio Integration

Support for Dante, AES67, and Linear PCM ensures professional-grade audio quality.

Key Features

▶

Flexible Network Connectivity

  • ✔

    1Gbps Ultra Low-Latency: Delivers near-instantaneous transmission over AV-over-IP networks using lightweight compression technology without compromising image quality.

  • ✔

    Ethernet and Fiber: The P-AVN-4 features standard RJ45 and SFP ports to support deployment across any network infrastructure.

  • ✔

    PoE+ Support: Simplifies setup with Power over Ethernet, delivering both power and data over a single cable.

▶

Versatile Input & Output Options

  • ✔

    HDMI & USB-C: Connect a variety of video sources, including HDMI 2.1 with HDCP 2.3 and USB-C with DisplayPort, for seamless integration into any AV workflow.

  • ✔

    Analog & Digital Audio: Delivers ultimate flexibility in audio routing with support for professional balanced analog audio, Linear PCM, AES67, and Dante.

  • ✔

    HDR Support: Ensures peak contrast and color reproduction with HDR compatibility.

▶

Multi-Codec Support for Any Application

  • ✔

    JPEG-XS (FIP/TDC Profiles): Ideal for applications requiring high-quality, low-latency video, such as live production, eSports, and broadcasting.

  • ✔

    MPEG-4 (H.264) and HEVC (H.265): Perfect for low-bandwidth operations under 50Mbps and site-to-site transmissions sending IPMX streams over the internet.

▶

Compact Design

  • ✔

    Small Form Factor: The flexible design of the P-AVN-4 allows for easy installation behind displays, in control rooms, or within a dedicated 14-unit rack mount kit.

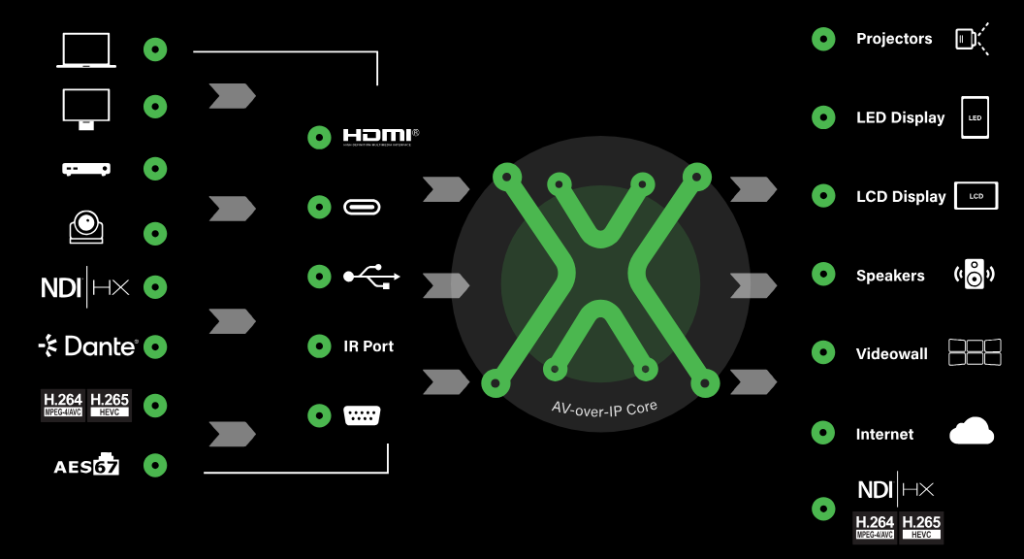

Interface

Applications

Our P-AVN-4 can be used for a wide range of applications, from small deployments in a meeting room using only a few transceivers to large installations in higher educations or conference centers with hundreds of transceivers. The AVN series provides you with a standards based, interoperable and scalable solution that allows delivery of future proof installations.

Educational & Corporate AV

Perfect for large campuses, meeting rooms, and lecture halls requiring seamless AV distribution.

Digital Signage

Distribute video to multiple screens in retail stores, transportation hubs, or large venues.

E-Sports & Live Production

Deliver smooth, low-latency video transmission for fast-paced events.

Virtual Matrix Switching

Ideal for switching and distributing video content in real-time.

Broadcast & Production

Bring IP-based workflows into the heart of your video production, enabling high-quality, ultra-low-latency encoding and decoding for live broadcasts.

Order Code

Product Code 説明
P-AVN-4
  • 1G IPMX, IPMX JPEGXS/FIP & H,264/265 Transceiver, includes Dante audio 2x2
P-AVN-M-WAL
  • Table and wall mounting bracket (set of 2), compatible with P-AVN-2/3/4/2E/2E
P-AVN-M-1RU
  • Rackmount, 1RU, can hold up to 3x P-AVN-2/2E/2D/4 units or 2x P-AVN-3
P-AVN-M-4RU-KIT
  • Rackmount Kit Frame, 4RU, holds 14x P-AVN-2/2E/2D/4 units, includes 14 sets of rackmount ears and 14 blindplates
P-AVN-PSU-TYPE-A-US
  • Type A power supply for P-AVN-2/4 (commonly used in the USA, Canada, Mexico, China, etc.)
P-AVN-PSU-TYPE-C-EU
  • Type C power supply for P-AVN-2/4 (commonly used in Europe, South America, Asia, etc.)
P-AVN-PSU-TYPE-G-UK
  • Type G power supply for P-AVN-2/4 (commonly used in UK, Ireland, Singapore, etc.)
