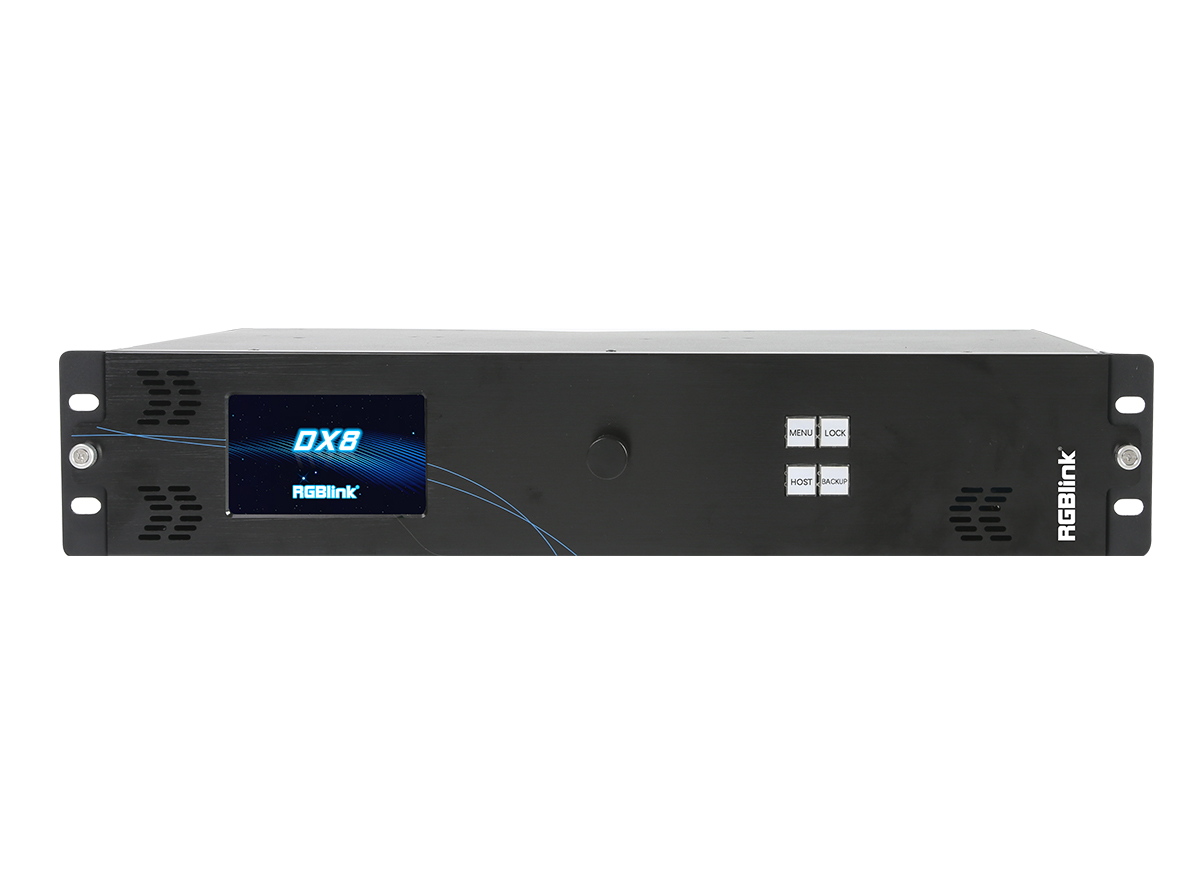

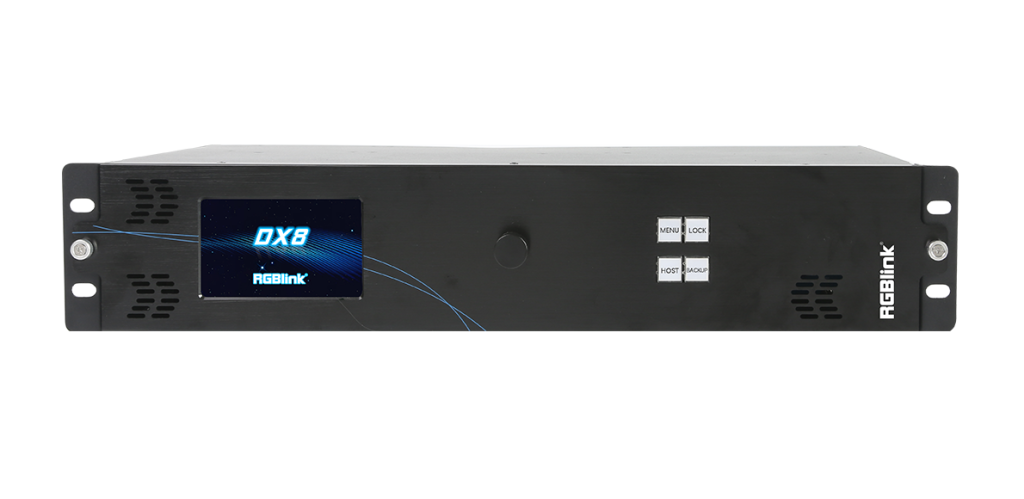

DX8

Independent Backup Controller

DX8 is an Independent Backup Controller, adopting card-based structure, supporting hot swap of modules, and offering options including redundant power supplies. DX8 is a stable high-performance platform that can be deployed in varied applications including corporate and meetings.

Datasheets
Catalogue
Contact us

Key Features

Order Codes

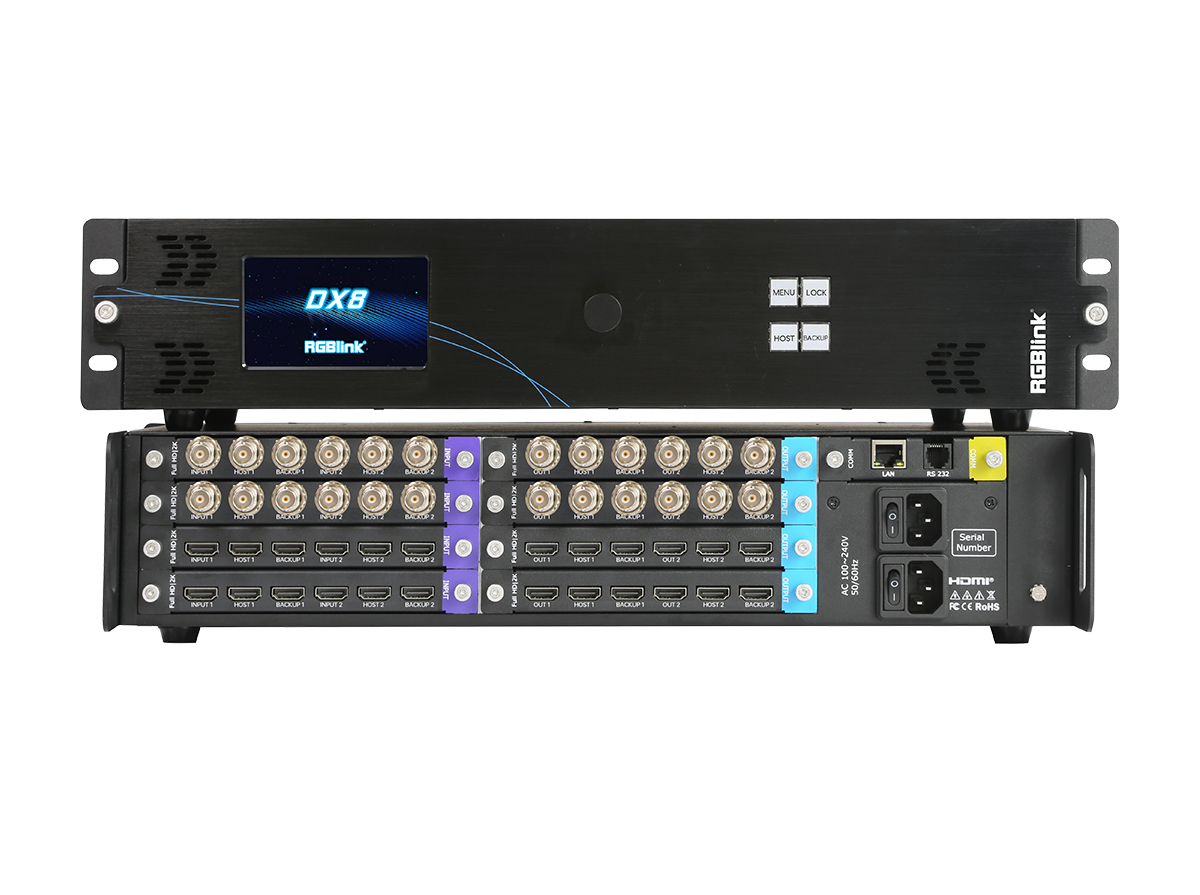

Main Unit
Product Code Description
710-0020-02-0 DX8 2U Host, Independent Backup Controller
  • Standard host, dual power supply, supports 8 slots
  • 4x input modules and 4x output modules are optional
  • Each input module can support 2 groups of input signal backups
  • Each output module can support 2 groups of output signal backups
  • Supports a maximum of 8 input backup groups and 8 output backup groups
Modules
Product Code Description
790-0020-01-1 Dual HDMI 1.3 Input & Quad HDMI 1.3 Output Module
  • 2x HDMI 1.3 inputs, 4x HDMI 1.3 outputs
  • Can realize 2 groups of 1-in-2-out HDMI distribution
  • Max input resolution 1920×1080@60Hz
790-0020-02-1 Dual SDI Input & Quad SDI Output Module
  • 2x SDI inputs, 4x SDI outputs
  • Can realize 2 groups of 1-in-2-out SDI distribution
  • Max input resolution 1920×1080@60Hz
790-0020-21-1 Quad HDMI 1.3 Input & Dual HDMI 1.3 Output Module
  • 4x HDMI 1.3 inputs, 2x HDMI 1.3 outputs
  • Can realize 2 groups of 2-in-1-out HDMI distribution
  • Max input resolution 1920×1080@60Hz
790-0020-22-1 Quad SDI Input & Dual SDI Output Module
  • 4x SDI inputs, 2x SDI outputs
  • Can realize 2 groups of 2-in-1-out SDI distribution
  • Supports 3G/HD/SD SDI output
  • Max input resolution 1920×1080@60Hz
